Rj45 Connector
Tab UP,LED/EMI Optional

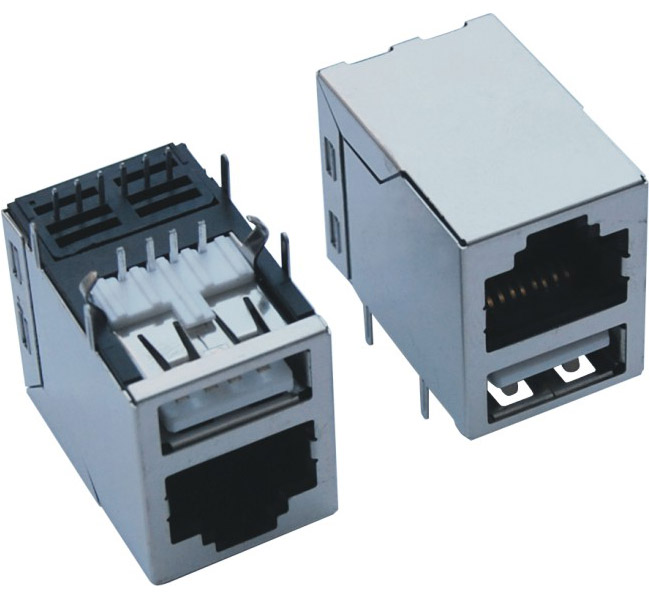

RJ45+USB Series
Feature:
. Compl ies with IEEE standards and al l 10/100 Ethernet
specificatons including 350uH with 8mA DC bias
. Contact: Phosphor Bronze, 6u-inch gold flashed
unless specified
. Housing: Thermoplastic PBT+30%GF UL94V-0 rated
. Operating temperature:0℃ to +70℃
. Storage temperature: -40℃ to +85℃
. Mates With Modular Plug Conforming To
. FCC Part68 Subpart F
. Lead-free process,compl iant RoHS
Notes:
Electrical:
1.voltage Rating: 125vac Rms
2.current Rating: 1.5 Amp
3.contact Resistance: 50 Mi l l iohms Max
4.insulation Resistance : 500 Megohms Min @500 VDC
5.dielectric Strength : 1000 Vac Rms 50hz.1min
Mechanical:
1.housing Material: Glass Fi l led Polter(ul94v-0)
2.contact Material: Phosphor Bronze T=0.46mm
3.plating: Gold Plation Over Nickel
4.operation Uft: 750 Cycles Min
5.pcb Retention Pre-solder :1 Lbmin
6.pcb Retention Post-solder:w Lbmin
