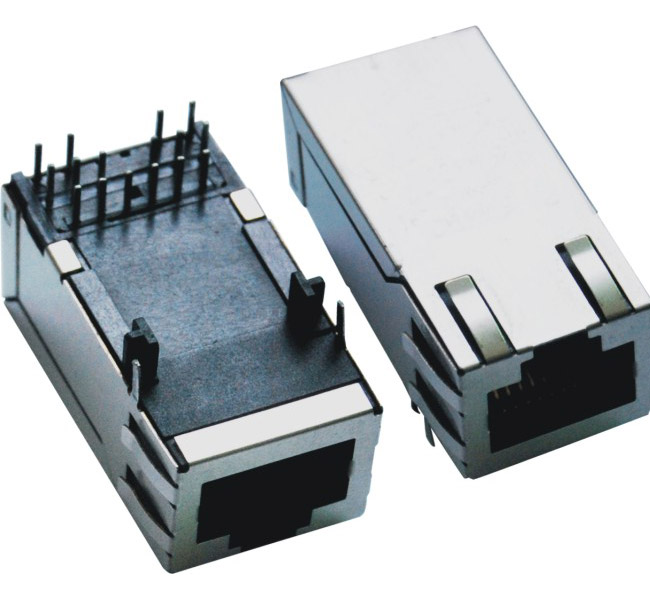

RJ45 1x1 TAB UP (1.3英寸1000M)
产品描述:
1.CONNECTOR MATERIAL:
HOUISING:THERMOPLASTIC UL94 V-0
SHIELD:Brass
SHIELD PLATING:NICKEL
CONTACT:COOPER ALLOY
CONTACT PLATING:SELECTIVE GOLD,6 MICRO-INCHS MIN IN CONTACT AREA
2.PIN NOT ELECTRICALLY CONNECTED MAYBE OMITTED SEE ELECTRICAL DRAWING
FOR OMITTED PINS
3.RJ45 CAVITIES CONFORM TO FCC RULES AND REGULATION PART 68.
4.THE PART IS RECOMMENDDED FOR WAVE SOLDERING PROCESS PEAK SOLDERING
TEMPERATURE IS 260° C MAX,10 SECS MAX
5.OPERATING TEMPERATURE T=0°C TO +70°C.
6.STORAGE TEMPERATURE T=-40°C TO +85°C.
7.All CRITICAL DIMENSIONS WITH "*"
Electronical Specifications:
1.0 Turn Ratio @100KHz: (P2~P3):(J1~J2) = 1:1±5%
(P4~P5):(J3~J6) = 1:1±5%
2.0 Primary Inductance: 350uH MIN @100KHZ,0.1V 8mA DC BIAS
3.0 DC Resistance:(J1~J2):(J3~J6) 1.2 OHMS MAX
4.0 Insertion Loss: 1-100MHz -1.2dB MAX
5.0 Return Loss: 1-30MHz -16dB MIN
30-60MHz -12dB MIN
60-80MHz -10dB MIN
6.0 CROSS TALK: 1-100MHz -30dB MIN
7.0 COMMON TO COMMON MODE ATTENUATION: 1-100MHz -30dB MIN
8.0 Isolation: PHY Side to Line Side: 1500VAC or 2250VDC
